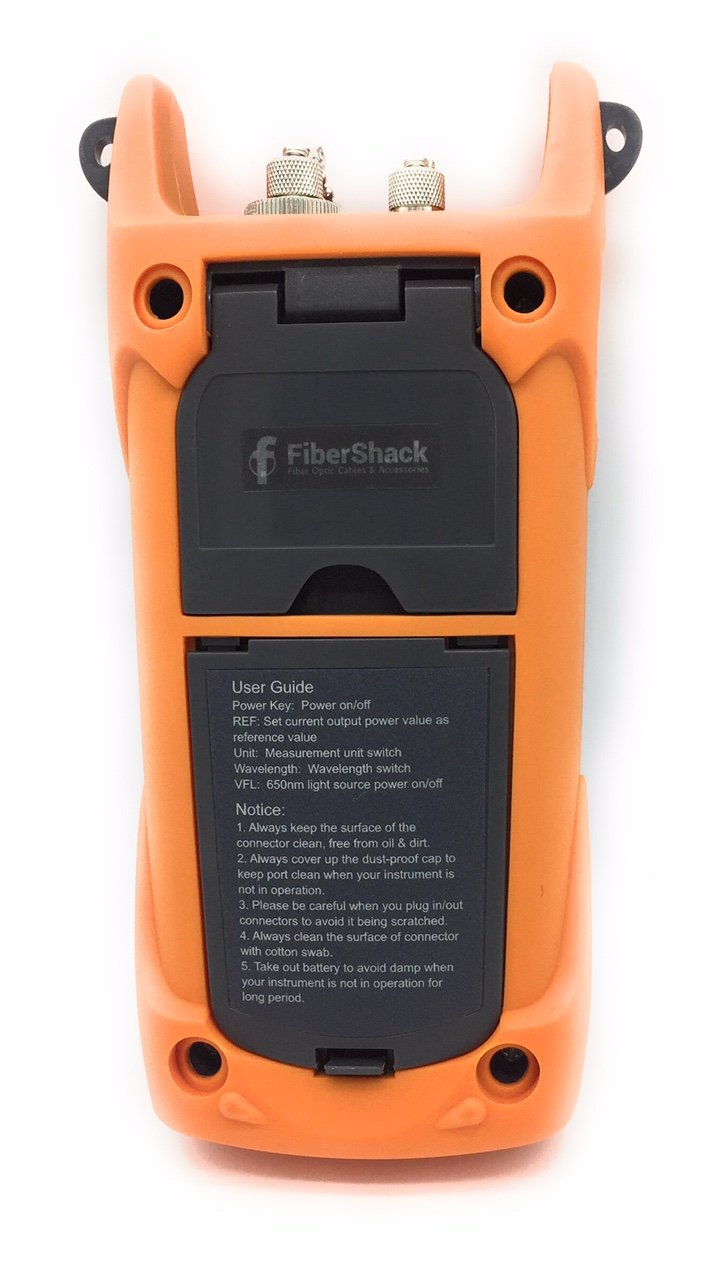

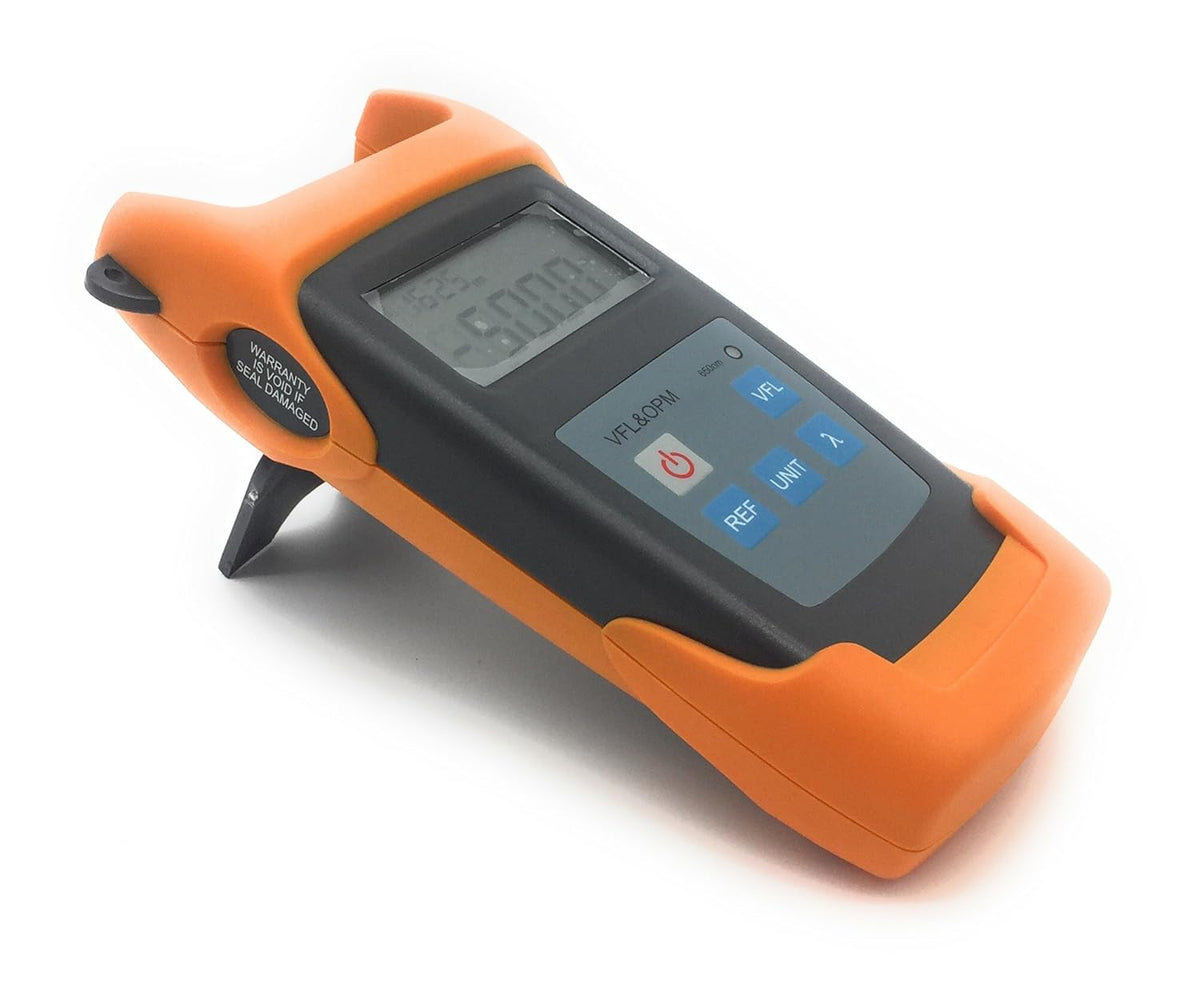

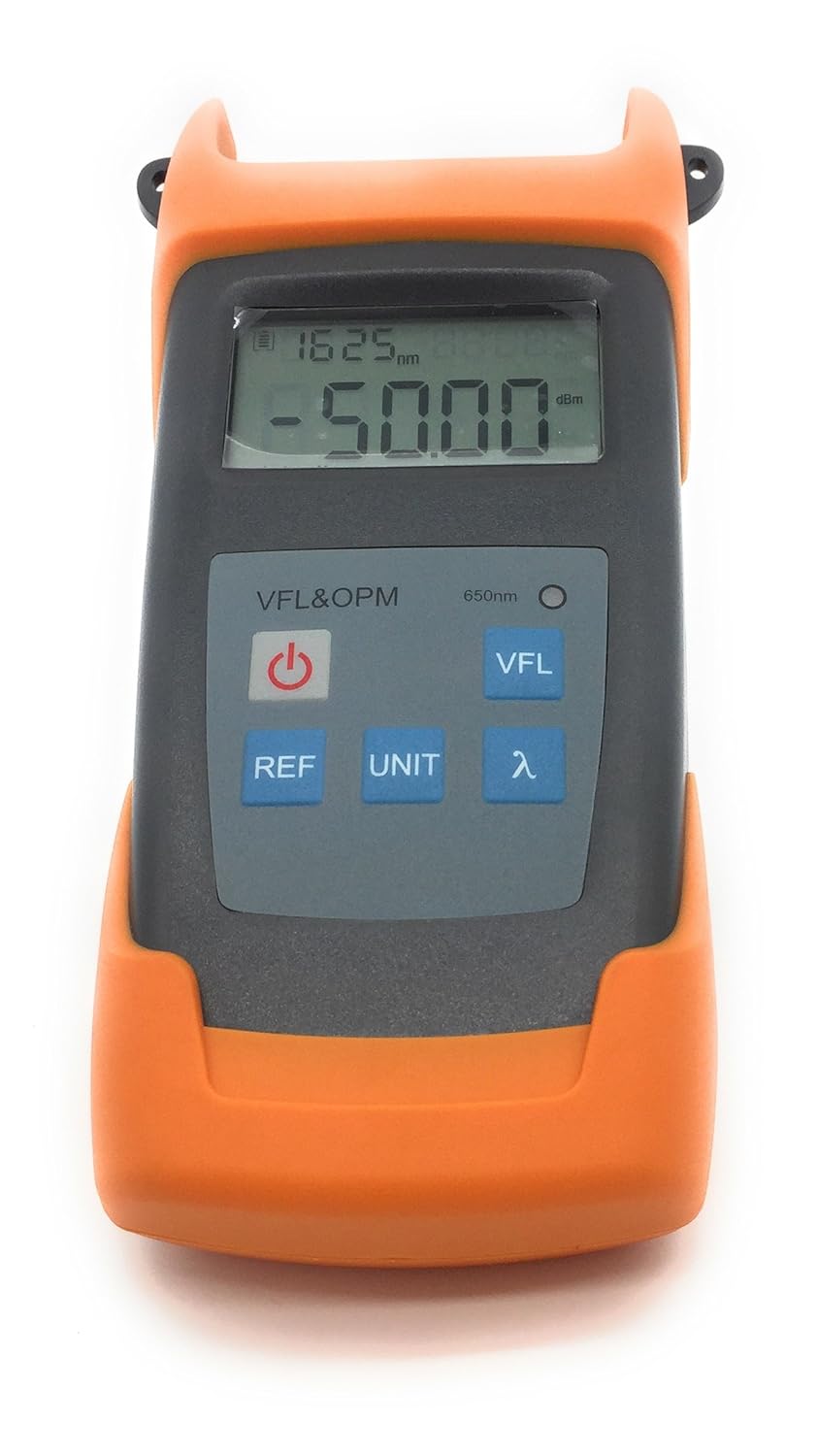

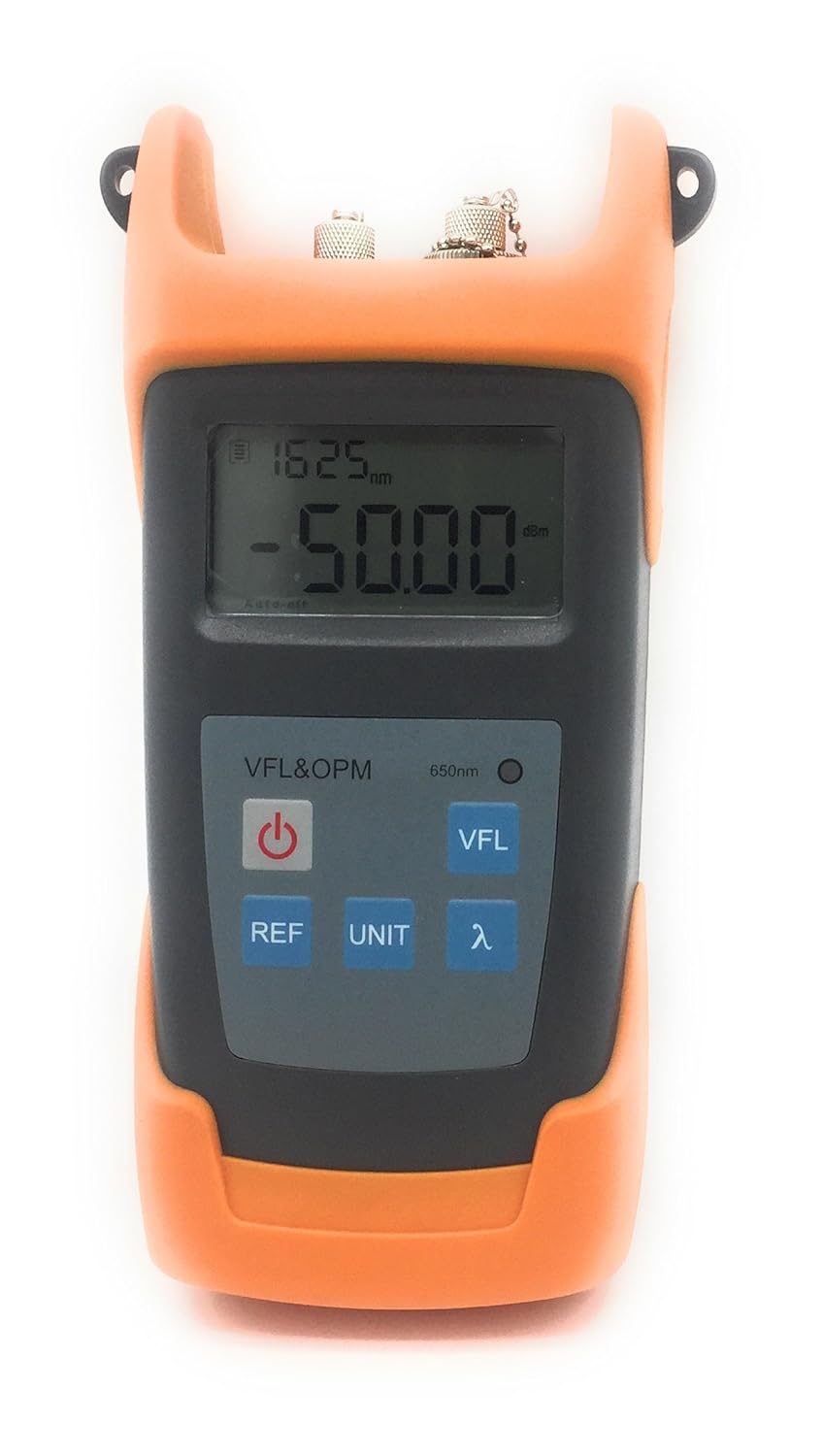

Handheld Optical Power Meter with Visual Fault Locator and Fiber Optic Light Cable Tester P22761
Handheld Optical Power Meter with Visual Fault Locator and Fiber Optic Light Cable Tester P22761
COMMERCIAL GRADE: Calibrated Wavelengths Supported (nm): 850,1300,1310,1490,1550,1625nm
RANGES COVERED: Wavelength Spectrum (nm) 860nm to 1626nm Measurement Range (dBm): -50dBm to +26dBm. Resolution(dB): Linear 0.1% or Non-linear 0.01dBm
CONVENIENT DESIGN: One Piece Meter & Built-In 10mW VFL Replaces Need for Separate Meter & Red Light Pen.
ADDED EXTRAS: SC Conversion head, Cleaning Swabs, Rugged Cover & High-Quality Carrying Case with strap. ENGLISH INSTRUCTIONS For All Parts Included. Batteries Not Included.
TRUSTED SUPPLIER - Since 1989, Pacific Satellite Inc has been installing commercial CATV systems and networks throughout the USA. We independently source our own brand high spec suite of fiber optic products for HDTV, SDI, and Analog MATV systems.
Fiber Professionals. Every installation needs to have flawless fiber, from signal origin to termination. And if not, the end result will be inefficiency and frustration.
Proven in the field. We deliver Live Cable feeds to some of the largest racetracks and sporting venues across America, where mission critical performance is essential to our business
Optimize your Fiber - Some Fiber optic cables don’t always perform out of the box, or don’t operate after installation. It’s essential to have the right kit in order to test for and find any sources of signal loss. Our VFL’s (visual fault locator / visual fault finder), Power Meters and hybrid meters solve any problem you experience while trying to keep your fiber flowing
Premium quality at a business friendly price - We provide discounts for bulk purchases so whether you’re installing Fiber to the Home, Business or industrial use, our Fiber helps you keep your business successful and profitable.
Pre-Tested. Every Meter is inspected for quality and used daily on Fiber sites across the USA. We use what we sell, and we 100% support our customer in making the best equipment decisions for your business.
Suitable for all networks. CATV, FTTH, FTTB and FTTP systems

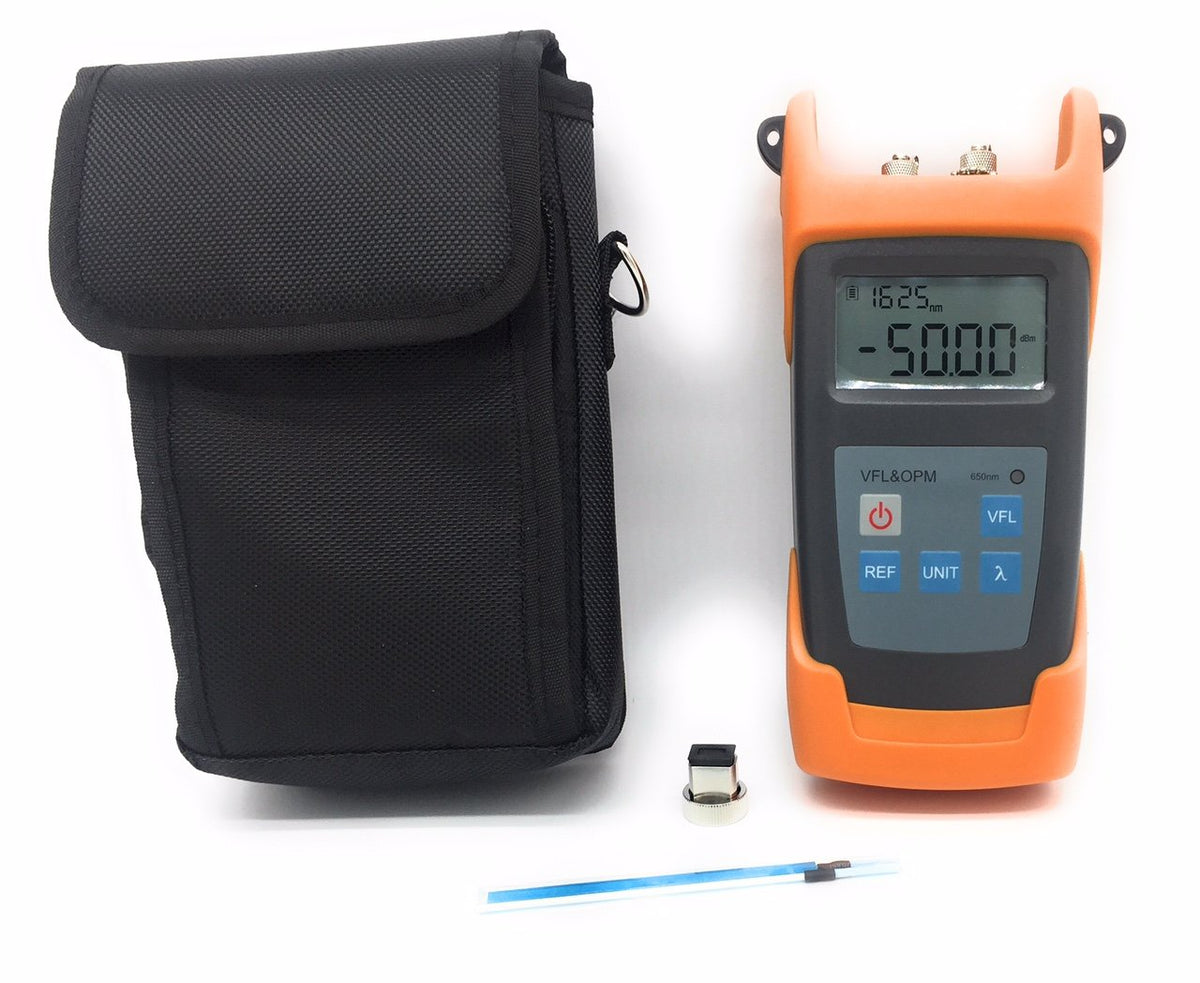

Calibration Wavelength(nm): 800~1700 Detector Type: InGaAs Measurement Range(dBm): -50,+26dBm linearity (dB): 0.01 Display Resolution(dB): 0.01 Wave ID nm: 850, 980, 1300, 1310, 1490, 1550,1625 Connector: FC/SC/ Interchangeable (2) AA Alkaline Battery - Not Included! Power Adapter(V): 8.4 Battery Operating time (h): 240 Without Backlight Operation Temperature(oC): -10(oC) +60 Storage Temperature(oC): -25(oC)+70 Dimension(mm): 18*8.2*2.8CM Weight(g): 230 Package included: 1x All-IN-ONE Fiber optical power meter 1x Canvas bag 1x SC Conversion head. ENGLISH instructions!
