1080P HDMI KVM Extender over Cat5e Cat6 with IR Pass Through H171419
1080P HDMI KVM Extender over Cat5e Cat6 with IR Pass Through H171419
Full HD Resolution up to 1080p ,Extends HDMI, USB and IR over a network switch or a direct connection with Cat5E/6 UTP cable up to 120m(393ft)
Covering Banking,Securities,Engineering and Home Theater Multiple Control Purpose
Support One to One, One to Many,Many to Many connection By using network IGMP Switch,
HDMI bandwidth up to 2.25Gbps data rate,HDCP 1.3 compliant & HDMI,1.3 compliant.Supports 480i/480p/720p/1080i/1080p@60Hz
Support fiber-optic converter to extend transmission distance up to 20KM
Stable 1080P Many to Many HDMI KVM Multiple extender up to 400ft Over IP Cat5e Cat6 With IR Pass Through
Overview:?

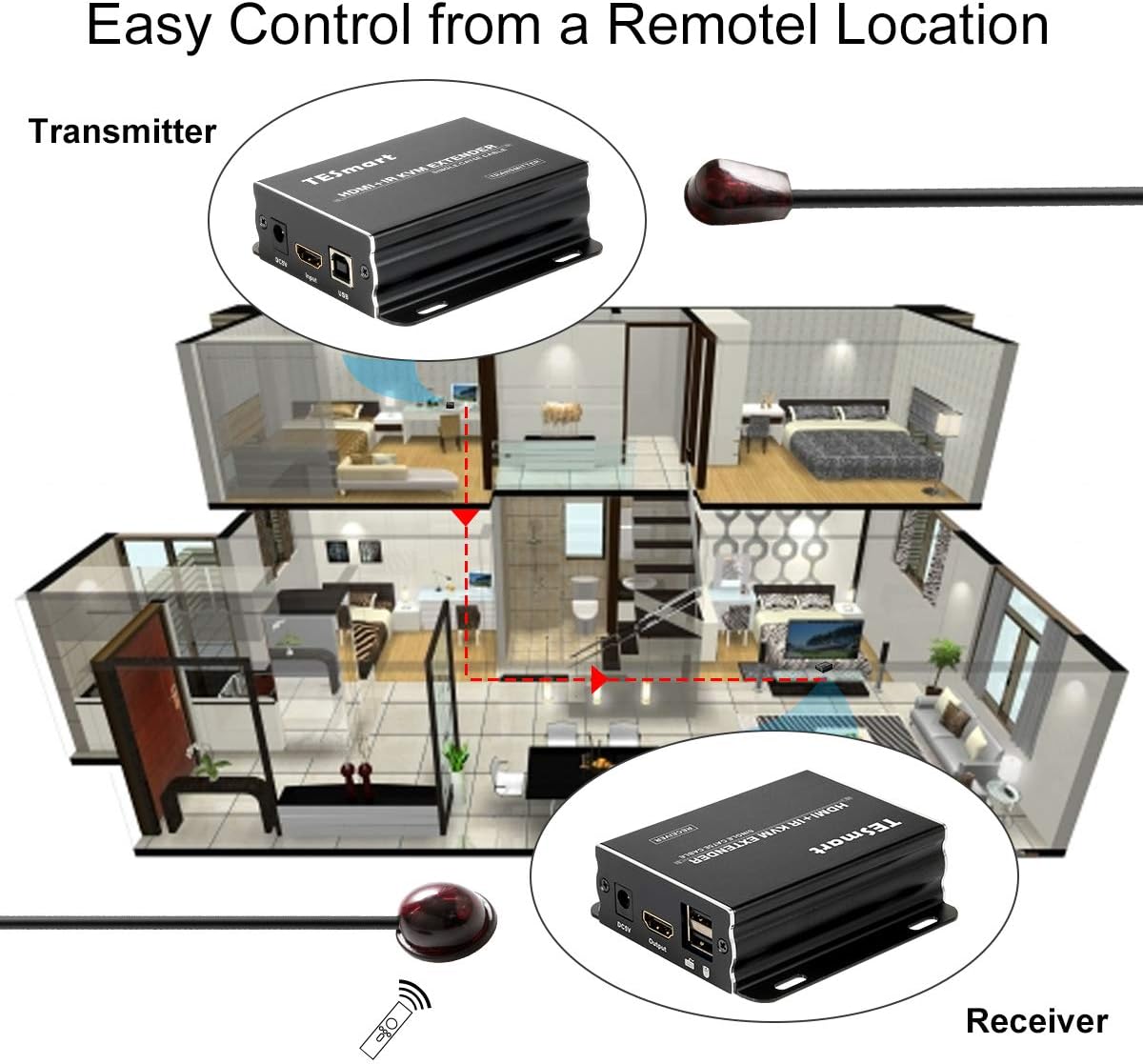

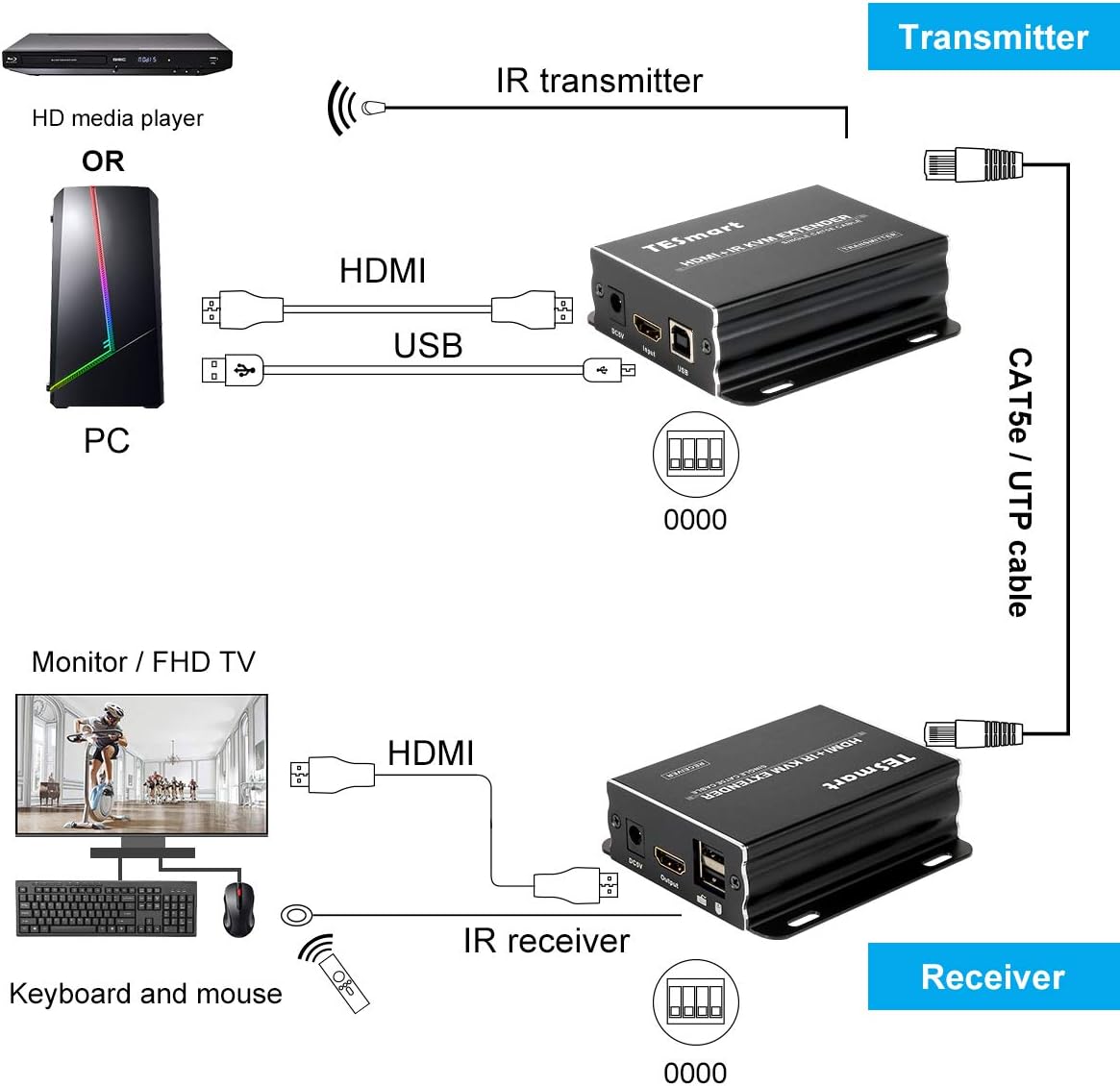

This HDMI KVM Extender delivers 1080P HDMI signal from your video source via single CAT5/CAT6 network cable up to 400ft.It able to build up single one source to one single End Extending/Splitting and Switching or Up to 16 Sources to 255 Ends with differenct selection as muliple control with one Set Keyboard & Mouse by switching IP Address. IR transmission for End to Source control media playback?
Note:?
1. This extender requires Transimitter and receiver to work at the same time.?
2. Once one of Receivers changed IP Address, please reset the receiver power.?
3. Use DC5V power supply only. Make sure specification matched if using adapters not supplied by factory.
4. Must be to use IGMP Network Switch for multiple connection.

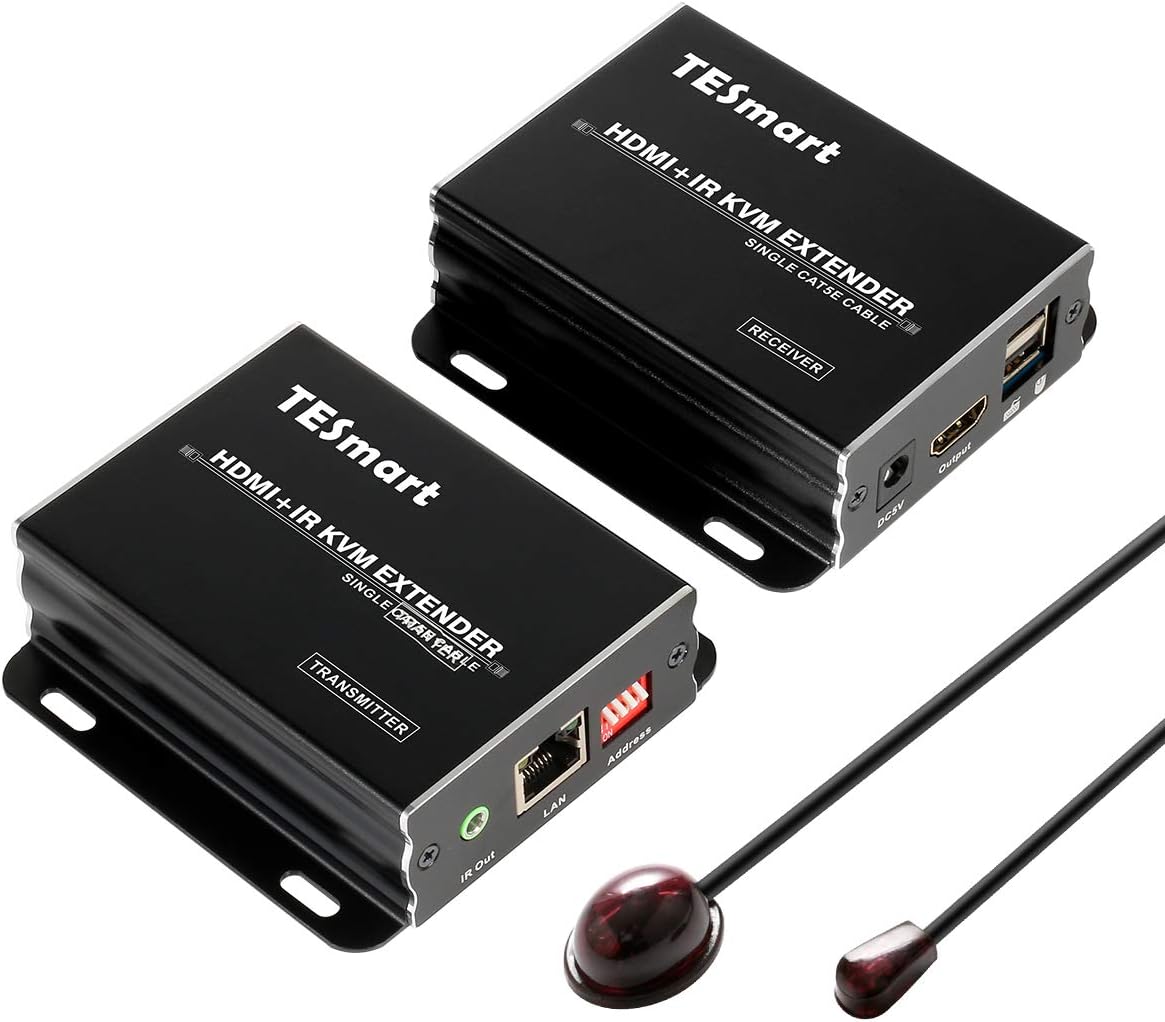

Package Contents:?
1 X TESmart 1080P HDMI Extender Receiver??
1 X IR Receiver extension
1 X DC 5V Power Adapter?
1 X User Manual
Note:
1) In order to make these units to work, all the units need power supply not only the network cable.
2) It is normal the video will have delay. The delay based on the length of cable and using condition.
